Answer for Q1
When dealing with high-fidelity physics simulations where each run takes hours, traditional random sampling is highly inefficient because it can cluster data points in one region while leaving huge gaps in others. To overcome this limitation, engineers and researchers rely on structured and intelligent sampling methods to maximize the information gained from every single simulation run. These methods are generally divided into two main categories: initial space-filling and adaptive active learning.
The first step in building a dataset from scratch requires a “space-filling” strategy, where the primary choice is usually Latin Hypercube Sampling (LHS) or Sobol Sequences. Instead of picking points at random, these techniques ensure that the input parameters are distributed with perfect uniformity across the entire design space. Between the two, Sobol Sequences have proven to be more effective in real-world applications because they are “nested.” This means if you generate 50 initial samples using a Sobol Sequence and realize you need 50 more, you can add them seamlessly without ruining the uniform distribution of the overall dataset, a limitation that often breaks standard LHS workflows.
Once you have established a baseline dataset, the most cost-effective transition is moving toward Active Learning or Adaptive Sampling. Instead of guessing which simulation to run next, you train a temporary machine learning model (or an ensemble of models) on your initial data and let it predict thousands of unseen design points instantly. By analyzing where the model exhibits the highest uncertainty or where its predictions vary the most, you can pinpoint the exact locations where the model is struggling. Running your expensive CFD or structural solver only on these high-uncertainty points ensures that you never waste computational power on scenarios the model already understands well, often reducing the required dataset size by up to 50%.
| Sampling Strategy |
Core Mechanism |
When to Use It |
Practical Trade-off |
| Latin Hypercube / Sobol |
Distributes points uniformly across rows and columns to prevent data clustering. |
At the very beginning of your project when you have zero data and the model has no knowledge yet. |
It is completely blind to the actual physics or complexity of the simulation output. |
| Active Learning (Adaptive) |
Uses the model’s own uncertainty to select the next, most difficult simulation points. |
After you have a small baseline dataset and want to maximize accuracy with minimal simulation runs. |
Requires setting up an automated feedback loop between your ML model and the simulation software. |
Answer for Q2
In physics simulations like CFD or FEA, data is natively computed on unstructured, non-uniform meshes that are highly dense in critical areas (e.g., boundary layers or structural joints) and sparse elsewhere. Feeding this raw, irregular data into Machine Learning models requires converting it into a structured format. How you choose to represent this data directly dictates which neural network architecture you can use and how much physical accuracy the model will retain.
The historical approach relies on Resampled Uniform Arrays (Voxel/Grid), where the irregular mesh is mapped onto a standard 2D or 3D pixel-like grid. While this allows engineers to use highly mature CNN and U-Net architectures, it suffers from severe memory bottlenecks in 3D and obliterates fine geometric details at the boundaries unless an impractically high resolution is used. To solve this, the industry has heavily shifted toward Graphs, which treat the original simulation mesh nodes as points and mesh elements as edges. Using Graph Neural Networks (GNNs) preserves 100% of the solver’s original resolution and spatial connectivity, making it the most successful approach for complex, free-form physics problems today. Alternatively, Point Clouds discard connectivity entirely and treat the data as floating coordinates, which is highly flexible for geometric variations but struggles to enforce strict physical conservation laws.
Choosing a representation means choosing your model architecture. The table below breaks down how each format pairs with specific ML models and their performance characteristics in practice.
| Representation |
Compatible ML Model |
Memory Efficiency |
Geometric Fidelity |
Physical Law Adherence |
| Resampled Uniform Grid |
CNN, U-Net, ViT |
Poor (Scales cubically in 3D) |
Low (Blurs sharp boundaries) |
Medium (Can suffer from interpolation errors) |
| Graph (Mesh-Based) |
GNN (e.g., MeshGraphNets) |
Excellent (Only stores actual nodes) |
Perfect (Matches native solver mesh) |
High (Preserves derivative and spatial operations) |
| Point Cloud |
PointNet++, Point Transformer |
Good (Scales with node count) |
Medium (Lacks explicit connectivity) |
Low (Hard to calculate exact gradients) |
When choosing a pipeline for the “few, expensive samples” regime, you must balance implementation speed against long-term model accuracy.
| Representation Strategy |
What Actually Works (The Good) |
The Hidden Catch (The Bad) |
Real-World Industry Verdict |
| Resampled Uniform Grid |
Blazing fast training times; huge ecosystem of pre-trained models. |
Heavy loss of boundary layer physics; massive GPU memory overhead. |
Best for fixed geometries (e.g., a specific pipe where only flow rates change). |
| Graph (Mesh-Based) |
Unrivaled accuracy; easily handles changing shapes and moving boundaries. |
High computational training overhead; complex data preprocessing pipelines. |
The gold standard for production and generalized physics surrogates. |
| Point Cloud |
Extremely flexible for arbitrary shapes and non-matching mesh topographies. |
Discards structural neighbor info, forcing the model to re-learn spatial topology. |
Rarely used for high-precision physics, but good for quick shape classification. |
Answer for Q3
Data augmentation in physical sciences is a double-edged sword. When applied correctly by leveraging geometric symmetries (such as reflection or rotation), it can double or quadruple your dataset instantly without running additional expensive simulations. However, unlike traditional computer vision where random cropping or adding noise is acceptable, physics data must strictly obey conservation laws; a single unphysical transformation will break the continuity of the fields and render the data useless.
Valid augmentations must be equivariant to the physical laws governing the system. For instance, when mirroring a fluid flow field across an axis, you cannot just flip the spatial coordinates, you must also invert the corresponding directional velocity vectors (u, v, w) to maintain physical realism. Similarly, rotation is only safe if there are no fixed external fields, like a constant gravity vector acting on the system, which would be violated if the object turns but the gravitational pull does not.
On the other hand, techniques like superposition (adding the fields of Simulation A and B to create a new Sample C) are strictly forbidden in non-linear regimes, such as turbulent fluid dynamics governed by the Navier-Stokes equations. Furthermore, computer vision tricks like random noise or blurring destroy the exact mathematical derivatives of the fields, creating non-zero divergence, which physically implies that mass or energy is magically vanishing or appearing out of thin air.

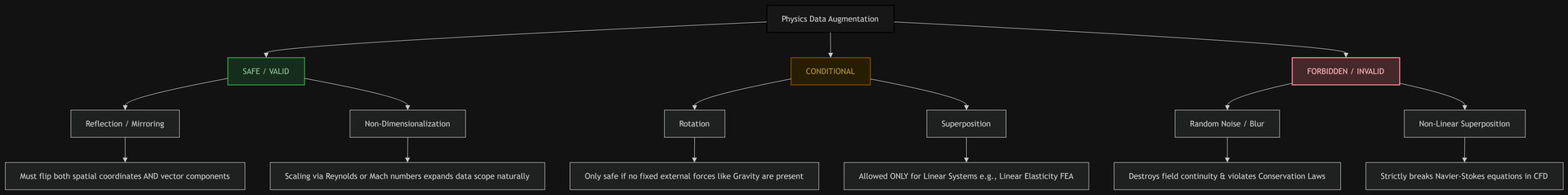

The diagram functions as a taxonomy framework that categorizes data augmentation techniques based on their compliance with physical laws. Instead of a sequential process flow, it maps out a classification tree divided into three distinct safety tiers based on risk:
-
The SAFE / VALID Tier (Green): This branch represents transformations that are mathematically guaranteed to maintain physical integrity if executed properly. Reflection belongs here because physics is spatially symmetric, provided you invert the corresponding vector directions alongside the coordinates. Non-Dimensionalization is also placed here as a highly effective data-expansion strategy; by transforming raw inputs into dimensionless ratios (like Reynolds or Mach numbers), you generalize the model’s scope without altering the underlying physics.
-
The CONDITIONAL Tier (Yellow): This branch highlights techniques that are highly effective but carry strict engineering caveats. Rotation is conditionally safe; it works perfectly for isotropic materials but fails if the system relies on a fixed external vector, such as a constant downward gravity pull. Superposition (adding two simulation fields together) is also strictly bound to this tier, it is highly efficient but mathematically valid only for linear systems, such as small-deformation structural mechanics.
-
The FORBIDDEN / INVALID Tier (Red): This branch explicitly flags standard computer vision techniques that destroy physical realism. Random Noise or Blurring breaks the spatial continuity and exact derivatives of field data, causing conservation laws to fail (e.g., creating mass out of nothing). Similarly, trying to use Superposition on Non-Linear Systems (like combining two turbulent CFD flows governed by the Navier-Stokes equations) is completely forbidden because the physics of fluid momentum cannot be simply added together.
Answer for Q4
When I set out to build an active learning loop to save on my simulation budget, I wanted to move away from the standard industry approach. Typically, people train a handful of AI models and look for areas where those models give different answers. The problem with that method is models can be unanimously confident yet completely wrong.
Instead, my strategy uses the laws of physics as a built-in alarm system. Here is how the loop works: I use my small initial dataset to train a fast surrogate model, then I make it predict thousands of new, untested scenarios instantly. Instead of looking at statistical disagreements, I analyze the predictions to see where the AI most severely breaks real-world physics laws, like mass magically disappearing in a fluid flow or forces not balancing out in a structure. The exact scenarios where the model’s logic completely falls apart physically are the ones I automatically harvest and send to my expensive solver to be simulated properly.
The beauty of this framework is that it is a living, evolving pipeline rather than a rigid system. Because everything is based on evaluating these predicted points, its ultimate success depends heavily on how you choose to define and track these physical errors as your project grows. There is massive potential for future development here; you can constantly refine the selection logic, shift priorities between different physical constraints as the model gets smarter, or combine this physical alarm with traditional statistics. It gives you a highly modular foundation that you can continuously adapt and expand.
| Strategy |
Selection Trigger |
Core Advantage |
Main Challenge |
Future Development Potential |
| Standard Ensemble |
Statistical variance between different AI models. |
Easiest to implement because it requires no knowledge of the underlying physics. |
Can easily miss critical errors if the models share the same blindspot. |
Low. You are mostly limited to just adding more models to the mix. |
| My Physics-Driven Loop |
The exact points where the AI violates fundamental laws of nature. |
Extremely data-efficient because it aggressively targets the AI’s structural weaknesses. |
Requires setting up a custom evaluation script to catch physics violations. |
Extremely High. You can infinitely upgrade how the AI evaluates its own errors as your ideas evolve. |
